Details
⯁ All specifications are subject to change without notice.
Like the reliable tool you grab for every job, the Smuggler is the go-to bike for any trail pointed up, down, and all around.
With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in our lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.
Product
Transition Smuggler Carbon Eagle 90 Bike
Model Year
2025
Intended Use
Trail
Rider
Unisex
Sizes and Geometry
SM
MD
LG
XL
XXL
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details
Carbon front and rear triangles; molded chainstay, seatstay, and lower down tube protection
Rear Travel
130mm
Rear Shock
RockShox Super Deluxe Select+, 210mm length x 50mm stroke
Fork
RockShox Pike Select+, 35mm stanchions
Fork Travel
140mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
FSA No.42/48/ACB, IS42 upper, IS52 lower
Stem
ANVL Swage, 40mm length, 35mm bar clamp
Grips
ODI Elite Flow, lock-on
Brakes
SRAM Motive Bronze, 4-piston
Rotors: SRAM CenterLine, 200mm front, 180mm rear
Rotors: SRAM CenterLine, 200mm front, 180mm rear
Brake Levers
SRAM Motive Bronze Stealth, tool-free reach adjust
Drivetrain
1x
Shifters
SRAM Eagle 90 Transmission, 12-speed, MMX mounting bracket
Front Derailleur
None
Rear Derailleur
SRAM Eagle 90 Transmission, 12-speed
ISCG Tabs
ISCG05
Chainguide
None
Cranks
SRAM Eagle 90 Transmission Alloy DUB, 165mm length
Chainrings
SRAM Eagle 90 Transmission, 30 tooth
Bottom Bracket
SRAM DUB, 73mm English/BSA threaded
Pedals
None
Chain
SRAM GX Eagle Transmission Flattop, 12-speed
Cassette
SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth
Rims
DT Swiss M 1900 Spline 30, 30mm inner width
Hubs
DT Swiss 370, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Ratchet LN freehub and XD driver
Spokes
DT Swiss Champion
Tires
Front: Maxxis Assegai, 3C MaxxTerra compound, EXO+ casing, 29" x 2.5"
Rear: Maxxis Dissector, 3C MaxxTerra compound, EXO+ casing, 29" x 2.4"
Rear: Maxxis Dissector, 3C MaxxTerra compound, EXO+ casing, 29" x 2.4"
Saddle
SDG Bel-Air V3
Seatpost
OneUp dropper
Drop: 150mm (SM), 180mm (MD), 210mm (LG), 240mm (XL/XXL)
Drop: 150mm (SM), 180mm (MD), 210mm (LG), 240mm (XL/XXL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 37.0mm
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.4"
Bottle Cage Mounts
One inside front triangle, plus accessory mounts under top tube

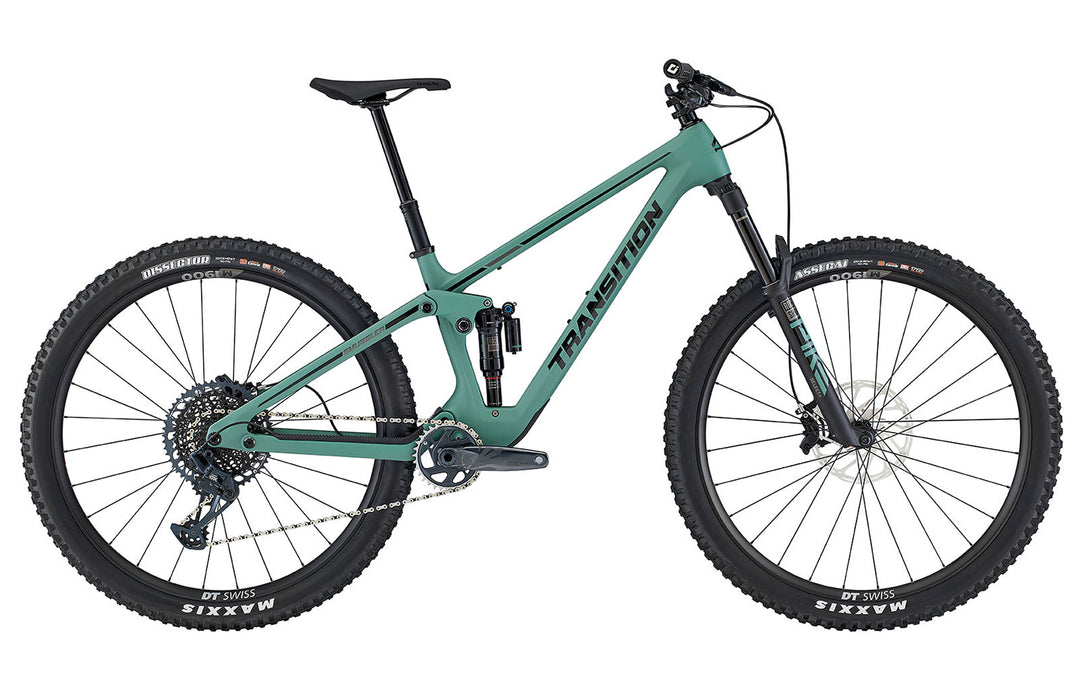

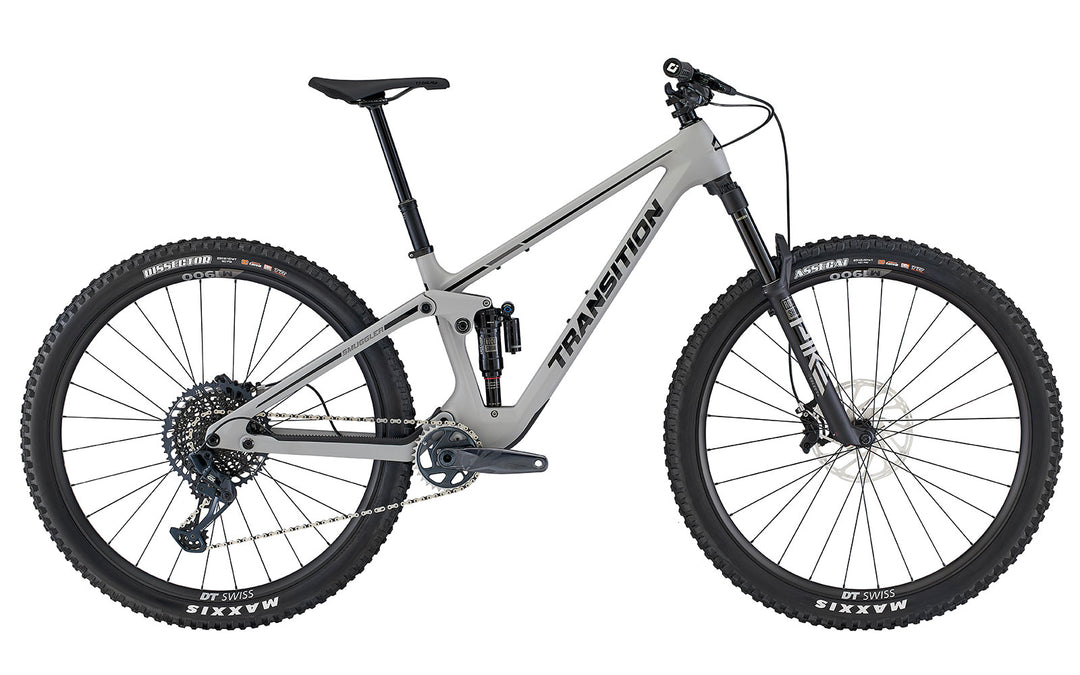

Colors
Juniper, Slab Grey
Warranty
Lifetime frame
Weight
Miscellaneous
• GiddyUp four-bar Horst-link rear suspension design
• Rear travel can be increased to 140mm with longer-stroke (55mm) shock
• Internal cable routing with guide tubes inside frame
• SRAM UDH (Universal Derailleur Hanger)
• Frame weight, size MD with shock: 6.6 lbs (3.00 kg)
• Includes tubeless valves and sealant
• Rear travel can be increased to 140mm with longer-stroke (55mm) shock
• Internal cable routing with guide tubes inside frame
• SRAM UDH (Universal Derailleur Hanger)
• Frame weight, size MD with shock: 6.6 lbs (3.00 kg)
• Includes tubeless valves and sealant
