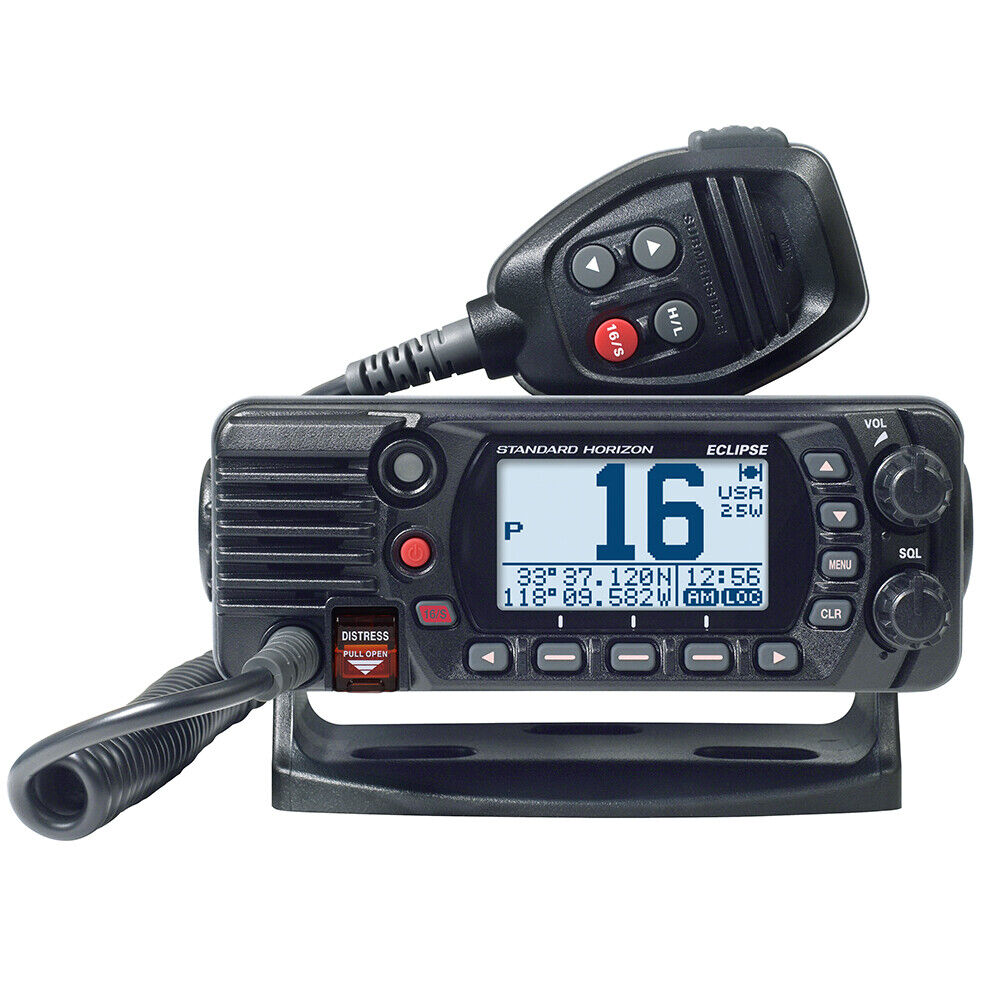

The GX1400 Eclipse Series is an ITU-R M493-13 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.

The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report and Send.

New Dot Matrix Display

High resolution dot matrix display makes navigating the radios many features smooth and easy. Now with a new brighter backlight for better display contrast

E2O Easy to Operate Menu System

Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.
Features:

Affordable Ultra Compact Class D Fixed Mount VHF Radio
Meets ITU-R M493-13 Class D DSC (Digital Selective Calling)
Replaces older Eclipse+ and Eclipse DSC Models
Radio controls on the Microphone
E2O Easy to Operate Icon/Menu System
Oversized Full dot matrix display (31 mm x 55 mm)
Built in Separate Receiver for CH70 (Receiving DSC Calls)
DSC test call and Auto DSC channel change selection
GPS position and Time Shown on a Full-dot Matrix Display when Connected to a GPS Receiver
NMEA In and Output Connections to a Compatible GPS Chart Plotter
Programmable soft keys
Automatically poll the GPS position of up to 4 ships using DSC
Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
All USA/International and Canadian Marine Channels
Preset key used to recall up to 10 favorite channels
NOAA weather channel selection with Weather Alert
Programmable Scan, Priority Scan, and Dual Watch
Flush-Mount Dimensions 5.15"W × 1.97"H × 4.72"D
