Shakespeare Marine Classic VHF Marine Band 6DB Centennial Antenna

Shakespeare Marine Classic VHF Marine Band 6DB Centennial Antenna

Sale price
$89.99
Color:White
Size:8'
In stock! Usually ships within 24 hours.

Details

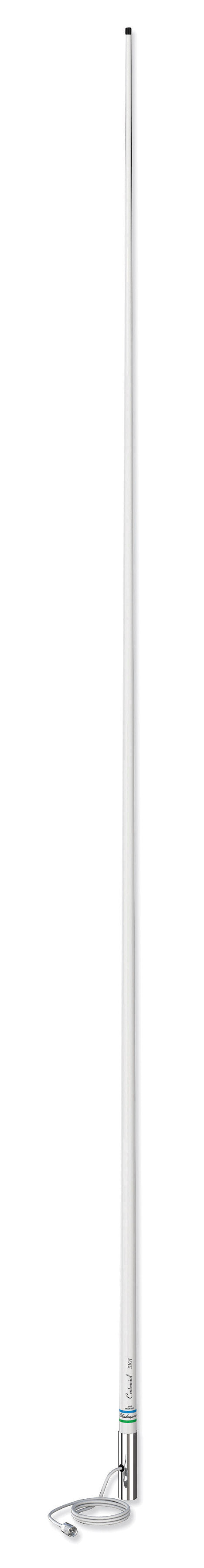

An economical and lightweight, self-supporting antenna, to aid in great communications where range is not the most important factor.
  • Maximum Power Input:
  • 50 watts
  • SWR Nominally:
  • Less than 1.5:1 at 156.8 MHz
  • Bandwidth:
  • 5 MHz within 2.0:1 VSWR
  • Frequency: VHF Marine Band
  • Antenna Gain:
  • 6dB
  • Ferrule:
  • Chrome-plated brass with a standard 1"-14 Thread
  • Coax Supplied:
  • 15 ft of RG-58 which can be cut to size
  • Connector Supplied:
  • PL-259 (Not installed)
  • Polarity:
  • Vertical
  • Impedance:
  • 50 Ohms
  • DC Grounded, but reads "open" on ohm meter
  • Suggested mount:
  • 4187 or 5187 Ratchet Mount or use a 409-R or 410-R Mounting Kit plus a 4008 Extension Mast to form a 16ft antenna system (Not Included)
  • Brass and copper elements to maximize range
  • Smooth, durable, high gloss finish
  • One Section
