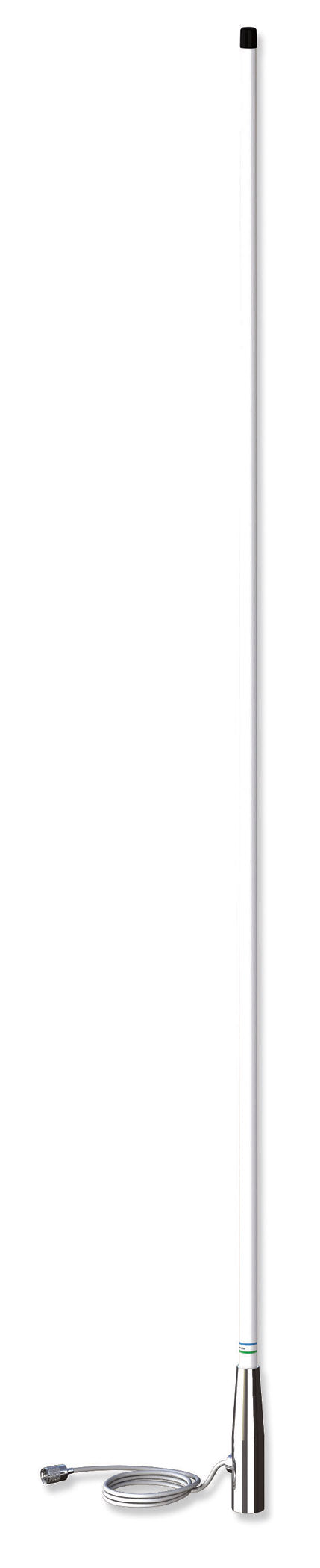

Shakespeare Marine Classic VHF Marine Band 3DB Antenna

Shakespeare Marine Classic VHF Marine Band 3DB Antenna

Sale price
$159.99
Color:Chrome-Plated Brass
Size:5'
Only 5 left in stock!

Details


Trusted by boaters worldwide, including the Coast Guard, these antennas are reliability and high quality every boater desires. Designed to reduce rough sea signal fading using field tested elements, you can trust these antennas to bring you the highest performance and quality you would ever dream of.
  • Maximum Power Input:
  • 50 watts
  • SWR Nominally:
  • 1.5:1 at 156.8 MHz
  • Bandwidth:
  • 5 MHz within 2.0:1 VSWR
  • Frequency: VHF Marine Band
  • Antenna Gain:
  • 3dB
  • Ferrule:
  • Chrome plated brass with standard 1"-14 thread
  • Coax Supplied:
  • 15 ft of RG-58
  • Connector Supplied:
  • PL-259 (Not installed)
  • Polarity:
  • Vertical
  • Impedance:
  • 50 Ohms
  • No DC Ground. The antenna will read open on continuity test
  • Suggested mount:
  • 4187 or 5187 Ratchet Mounts (Not Included)
  • Brass and copper elements
  • One section
