Details

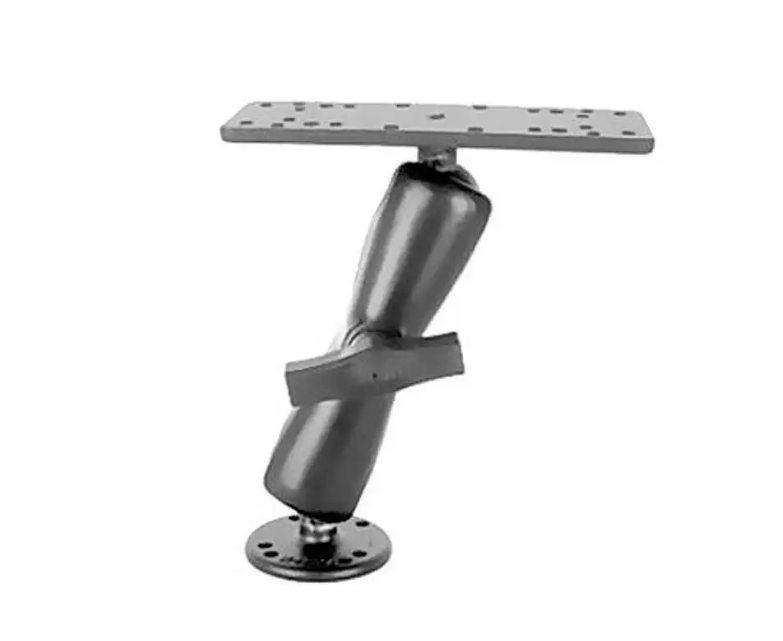

The RAM-D-111U-E consists of a 3.68" diameter round base, LONG length double socket arm and 11" x 3" rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
hardware included:
(4) .312" x .187" Shoulder Washers
product dimensions:
Overall Height: 16.03"
socket to socket length:
11.41"
hole pattern:
See Drawings
plate size:
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
ball size:
D Size (2.25")
weight capacity:
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
5.75 lb
