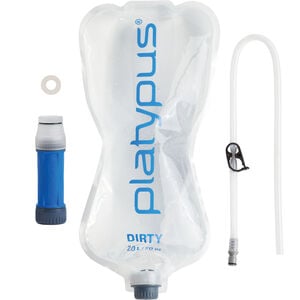

Building upon the original compact, fast and versatile performance of its 1L sibling, the QuickDraw 2L Filter System adds potential with a higher volume dirty reservoir and more ways to customize your system with compatible vessels. The 2L dirty reservoir is light and compact and will hold up to the rugged demands of a months-long thru-hike. Its wide-mouth opening and fill handle keep your hands dry and allow you to quickly fill it so you can keep moving. Like its predecessor, the dirty side I/O (inner/outer) threads attach to the QuickDraw reservoir as well as to standard narrow-mouth bottles like smartwater® and other Platy bottles. On the clean side, select between the DrinkCap for drinking and pouring and the ConnectCap™ that screws onto narrow-mouth bottles and has a hose attachment point. The short hose is fitted with a quick connector that pairs with any hydration reservoir with a quick disconnect, allowing you to quickly squeeze your water directly into your reservoir without taking it out of your pack. Two cleaning methods—shake-to-clean and backflushing—keep the filter flowing fast throughout your trip, while the Integrity Check process allows you to ensure it’s still safely filtering water. The QuickDraw 2L Filter system is the ultimate squeeze filter for pushing further and deeper in the backcountry.
-
Premium 2L Reservoir: Proprietary tri-layer film dirty reservoir has an easy-fill wide-mouth opening, a fill handle, and is super durable and packable—plus it’s guaranteed plastic-taste-free.
-
Combine & Customize: I/O threads, the ConnectCap™ and quick connector-fitted short hose let you dial in your custom leak-free system using the clean and dirty vessels you prefer, like smartwater® bottles, Platy bottles, and quick disconnect-fitted hydration reservoirs.
-
Ultralight: At just 5.7 oz (161 g), it keeps things ultralight with the added versatility of higher water capacity.
-
Fast Flowing: Hollow fibers filter 3 liters per minute with squeeze pressure and 1.75 liters per minute in a gravity setup.
-
Easy Cleaning: Easily shake-to-clean the system or backflush it to keep the water flowing fast throughout your trip.
-
Safe & Effective: Each filter is individually tested to ensure it meets all EPA & NSF guidelines for the removal of 99.9999% of bacteria and 99.9% of protozoa.*
-
Integrity Test: Unlike other squeeze filters, easily determine if your filter has been compromised and is unsafe to use in the event of a fall or freezing.
-
Compatible Vessels: QuickDraw reservoirs, smartwater bottles and other narrow-mouth 28mm bottles, Platy 2.0L, Platy SoftBottle™, Platy Water Tank, quick disconnect-fitted hydration reservoirs like the Big Zip™ EVO.
Specifications :
| SKU: |
11693 |
11694 |
| Size: |
3L |
2L |
| Color: |
Blue |
Blue |
| Minimum Weight (Standard): |
4.8 oz |
4.5 oz |
| Minimum Weight (Metric): |
0.14 kg |
0.13 kg |
| Weight (Standard): |
8.2 oz |
5.7 oz |
| Weight (Metric): |
0.23 kg |
0.16 kg |
| Width (Standard): |
9.5 in |
7.4 in |
| Width (Metric): |
24.1 cm |
18.8 cm |
| Length (Standard): |
3.9 in |
3 in |
| Length (Metric): |
9.9 cm |
7.6 cm |
| Height (Standard): |
3.2 in |
2.8 in |
| Height (Metric): |
8.1 cm |
7.1 cm |
| Effective against bacteria: |
Yes |
Yes |
| Effective against chemicals/toxins: |
No |
No |
| Effective against particulate: |
Yes |
Yes |
| Effective against protozoa: |
Yes |
Yes |
| Effective against viruses: |
No |
No |
| Filter media: |
Hollow Fiber |
Hollow Fiber |
| Filter pore size (microns): |
0.2 |
0.2 |
| Flow (L/min): |
3 liters per min |
3 liters per min |
| Cartridge life: |
1000 liters |
1000 liters |
| Field cleanable: |
Yes |
Yes |
| Water Bottle Adapter: |
Yes |
Yes |
| Material(s): |
Polyethylene, Polyurethane, Plastic, Hollow Fiber |
Polyethylene, Polyurethane, Plastic, Hollow Fiber |
| Country of Origin: |
Made in U.S.A. of U.S. and Imported Materials |
Made in U.S.A. of U.S. and Imported Materials |
| Packed dimension (Metric): |
24 x 10 x 8 cm |
19 x 8 x 7 cm |
| Packed dimension (Standard): |
9.5 x 3.9 x 3.2 in |
7.4 x 3 x 2.8 in |
