Details

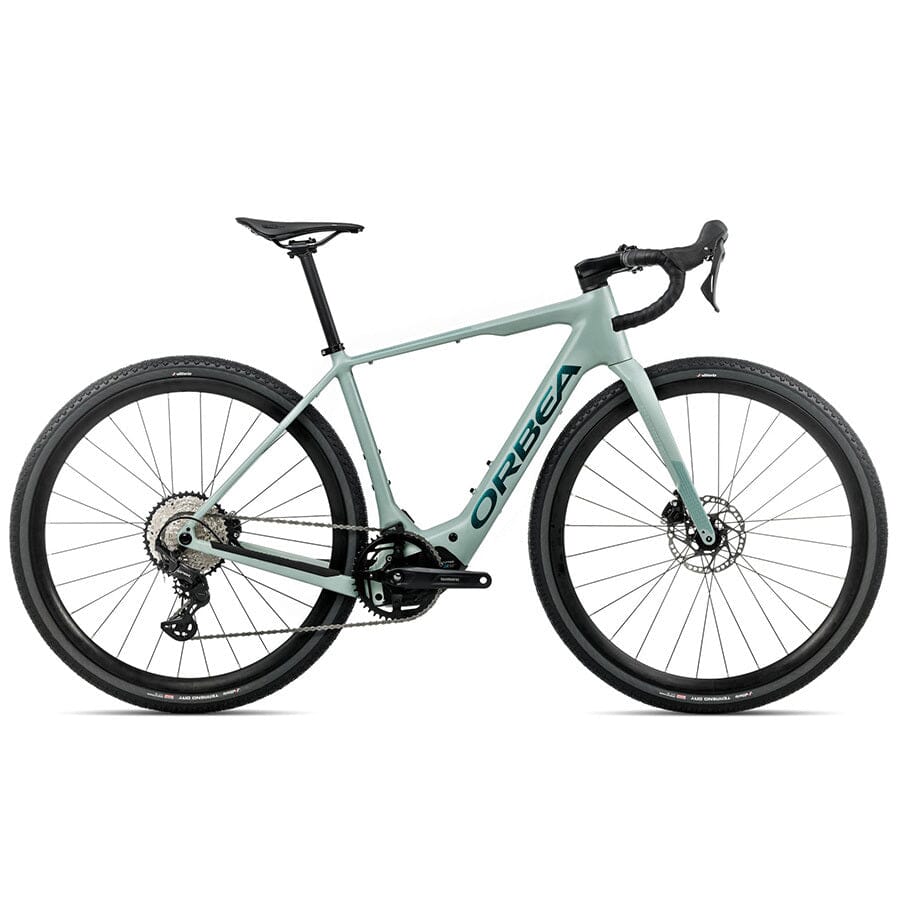

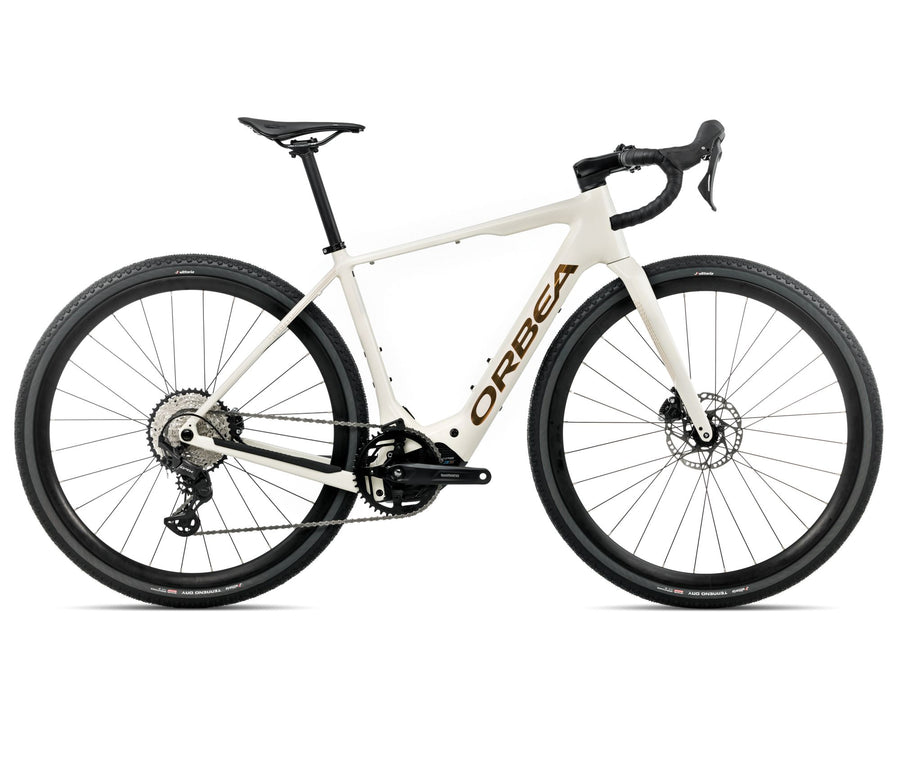

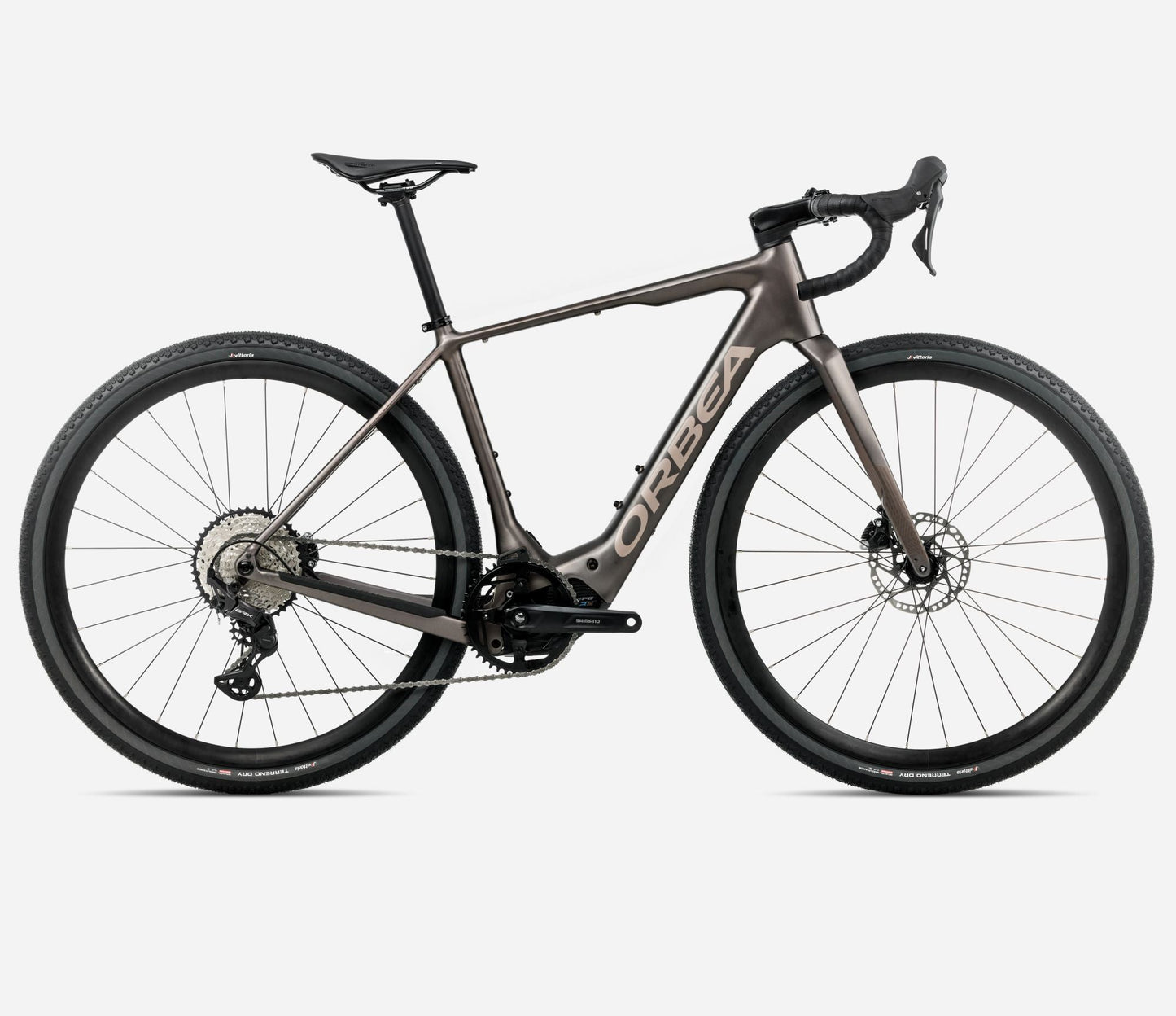

The Orbea Denna H30 28mph represents joyful adventure in its purest form, designed for riders who believe the best adventures never end and that there's always something exciting waiting around the next corner or over the next hill. This high-speed electric gravel bike removes limits through gravel-tuned electric assistance that delivers power for the steepest climbs, traction for the loosest surfaces, and range for the longest rides imaginable.
Built around Orbea's hydroformed alloy frame with OMR ICR carbon fork, the Denna H30 features strategic absorption points that deliver controlled flex to quiet trail chatter while maintaining pedaling efficiency and precise handling. The innovative geometry incorporates a shorter seat tube for optimized vibration absorption, balanced chainstay length for smooth yet responsive handling, and generous 50C tire clearance that accommodates everything from narrow road tires to mountain bike rubber for maximum versatility.
The powerful Shimano EP600 motor provides natural, intuitive assistance perfectly tuned for gravel adventures with speeds up to 28mph, while the substantial Orbea Internal 420Wh battery ensures extended range for ambitious routes without anxiety. The Shimano GRX RX822 1x12 drivetrain delivers smooth, reliable shifting across varied terrain, complemented by tubeless-ready alloy wheels that balance durability with performance for demanding gravel conditions.
Built for riders seeking to expand their horizons and discover new possibilities in gravel exploration, the Denna H30 makes big days in the saddle accessible regardless of terrain or fitness level. The horizon beckons with endless possibilities thanks to this bike's powerful motor assistance, capable handling, and thoughtful design that enhances every ride without unnecessary complexity.
Key Features
- Frame: Hydroformed Alloy with OMR ICR Carbon Fork
- Motor: Shimano EP600 (28mph Assistance)
- Battery: Orbea Internal 420Wh
- Drivetrain: Shimano GRX RX822 1x12
- Wheelset: Alloy Tubeless-Ready 700c with 50C Tire Clearance
| Frame | Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing |
|---|---|
| Fork | Orbea Denna OMR ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1 |
| Steerer Tube | FSA 1-1/2" Integrated Aluminium Cup |
| Battery | Orbea Internal 420Wh |
| Motor | Shimano EP600 |
| Charger | Orbea 2nd Generation eBike Smart charger 42V/2-4A |
| Remote | EN600-L |
| Chainring | Alloy EP8 42t |
| Crank | Shimano Steps EM600 |
| Shifters | Shimano GRX RX610 |
| Cassette | Shimano CS-M7100 10-45t 12-Speed |
| Rear Derailleur | Shimano GRX RX822 GS |
| Chain | Shimano M6100 |
| Chainguide | Orbea eBike chainguide |
| Handlebar | OC Gravel GR31, Reach 70, Drop 110 |
| Stem | OC Road Performance RP23, -5º |
| Brakes | Shimano RX410 Hydraulic disc |
| Wheels | Alloy, Tubeless, 700c, 21c |
| Tyres | Vittoria Terreno Dry Gravel G2.0 TLR 700x45c |
| Front Wheel Axle | Orbea Thru Axle 12x100mm M12xP1 Hollow |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded |
| Seatpost | SP 0.2 Carbon, 27.2mm, Setback 0 |
| Saddle | Selle San Marco Shortfit 2.0 Start Up Off Road |
| Mudguard | N/A |
| Handlebar Tape | Orbea Anti-Slippery/Shock Proof |
| Storage | OC Frame Bag for Denna |
*Specifications are subject to change without prior notice
