Details

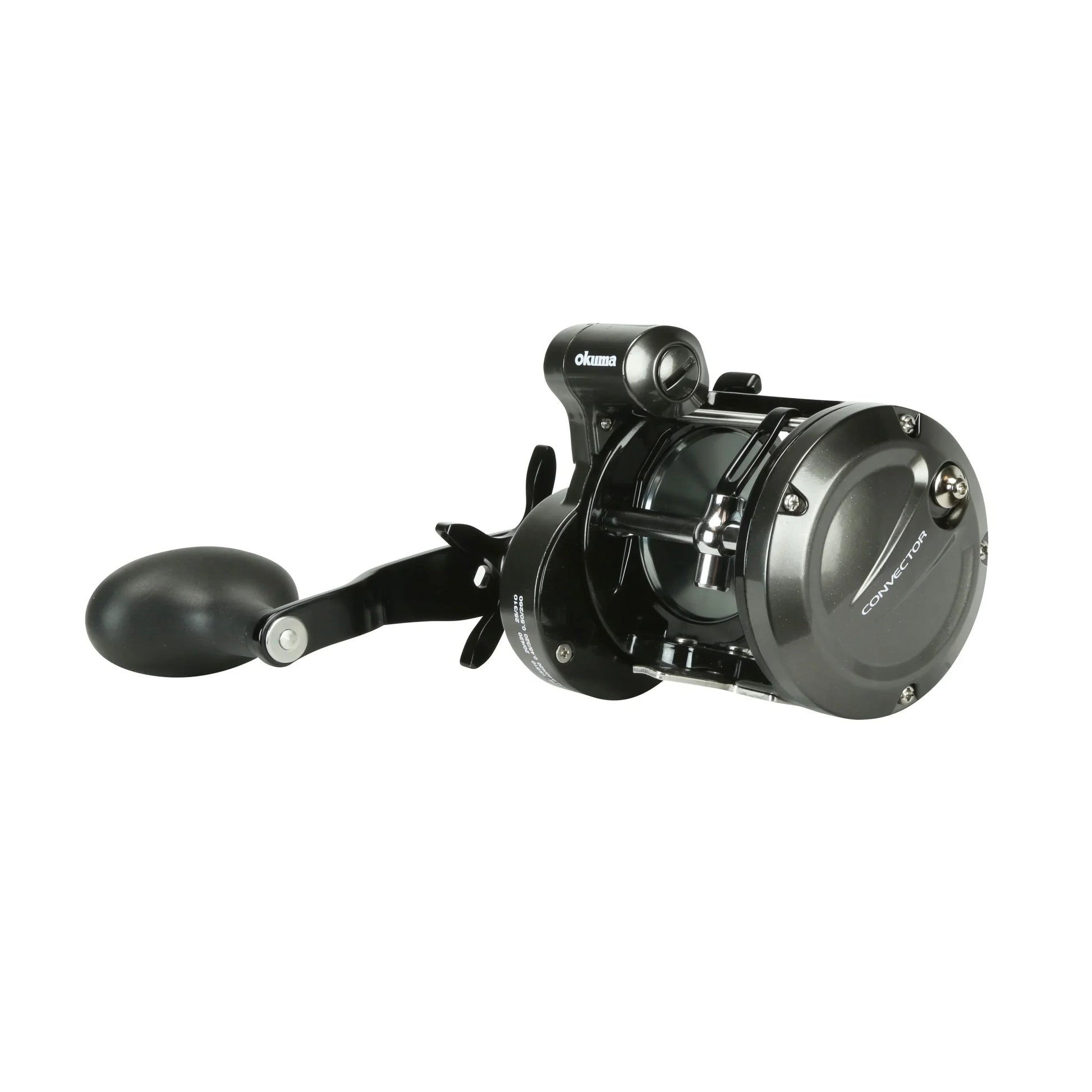

The Okuma Convector B Series has long been the go-to reel for serious freshwater and saltwater trolling anglers. Built to handle the demands of big-water fishing, it delivers the strength, control, and precision needed to stay in command.
Featuring a corrosion-resistant frame, oversized brass gearing, and a powerful Carbonite drag system, the Convector B offers smooth, consistent performance under heavy loads. A machined aluminum spool and self-lubricating gear system ensure long-term reliability in the harshest conditions.
Line counter models are equipped with CVT Clear View Technology for accurate, fog-free depth tracking in all weather. The wide-mouth level wind is designed for copper and heavy braided lines, making it ideal for targeting deep-water species like salmon and lake trout. With dual anti-reverse systems and ergonomic handle knobs, every retrieve feels solid and controlled.
Built for anglers who demand performance day in and day out, the Convector B Series continues to set the standard in precision trolling.
FEATURES
- Lightweight corrosion resistant frame & side plates
- Multi-disc, Carbonite drag system
- Aluminum handle arm with Ergo grip handle knobs
- 2BB + 1RB Stainless steel ball bearings
- Quick-set anti-reverse roller bearing
- Dual anti-reverse system (Mechanical & roller bearing)
- Oversized machine cut brass XL drive & pinion gears
- Self-lubricating gearing system, all models
- Machined aluminum, gun smoke anodized spool
- Mechanical line counter function measures in feet
- CVT: Clear View Technology anti-fogging line counter
- Wide Mouth Levelwind: Clearance for copper lines
- Automatic trip spool engaging mechanism
- MSS: C-40X Mechanical Stabilizing System increases stabilization
- Convector reels are backed by a 1-year limited warranty
SPECIFICATION
CONVECTOR "B" LINE COUNTER REEL
| MODEL | GEAR RATIO | BEARINGS | MONO LINE CAPACITY | SPOOL WIDTH(MM) | SPOOL OD (MM) | LINE RETRIEVE (CM) | WEIGHT (G) | MAX DRAG PRESSURE (KG) |
| CV-15DB | 5.1 | 2BB+1RB | LBS/YDS:10/330,12/290,14/240 φmm/M:0.35/220,0.40/170,0.45/130 KG/M:4/430,6/270,8/190 No/M:3/340,5/210,7/150 |
31.6 | 39.1 | 63.0 | 420 | 8 |
| CV-15DLB* | 5.1 | 2BB+1RB | LBS/YDS:10/330,12/290,14/240 φmm/M:0.35/220,0.40/170,0.45/130 KG/M:4/430,6/270,8/190 No/M:3/340,5/210,7/150 |
31.6 | 39.1 | 63.0 | 420 | 8 |
| CV-20DB | 5.1 | 2BB+1RB | LBS/YDS:10/330,12/290,14/240 φmm/M:0.35/220,0.40/170,0.45/130 KG/M:4/430,6/270,8/190 No/M:3/340,5/210,7/150 |
37.55 | 39.1 | 63.0 | 425 | 8 |
| CV-20DLB* | 5.1 | 2BB+1RB | LBS/YDS:10/330,12/290,14/240 φmm/M:0.35/220,0.40/170,0.45/130 KG/M:4/430,6/270,8/190 No/M:3/340,5/210,7/150 |
37.55 | 39.1 | 63.0 | 425 | 8 |
| CV-30DB | 4.1 | 2BB+1RB | LBS/YDS:10/330,12/290,14/240 φmm/M:0.35/220,0.40/170,0.45/130 KG/M:4/430,6/270,8/190 No/M:3/340,5/210,7/150 |
45.5 | 52.5 | 68.0 | 567 | 9 |
| CV-30DLB* | 4.1 | 2BB+1RB | LBS/YDS:10/330,12/290,14/240 φmm/M:0.35/220,0.40/170,0.45/130 KG/M:4/430,6/270,8/190 No/M:3/340,5/210,7/150 |
45.5 | 52.5 | 68.0 | 567 | 9 |
| CV-30DHB** | 5.9 | 2BB+1RB | LBS/YDS:10/330,12/290,14/240 φmm/M:0.35/220,0.40/170,0.45/130 KG/M:4/430,6/270,8/190 No/M:3/340,5/210,7/150 |
45.5 | 52.5 | 97.0 | 567 | 9 |
| CV-45DB | 4.1 | 2BB+1RB | LBS/YDS:10/330,12/290,14/240 φmm/M:0.35/220,0.40/170,0.45/130 KG/M:4/430,6/270,8/190 No/M:3/340,5/210,7/150 |
54 | 57 | 73.0 | 618 | 9 |
| CV-45DHB** |
5.9 | 2BB+1RB | LBS/YDS:10/330,12/290,14/240 φmm/M:0.35/220,0.40/170,0.45/130 KG/M:4/430,6/270,8/190 No/M:3/340,5/210,7/150 |
54 | 57 | 106.0 | 618 | 9 |
