Details

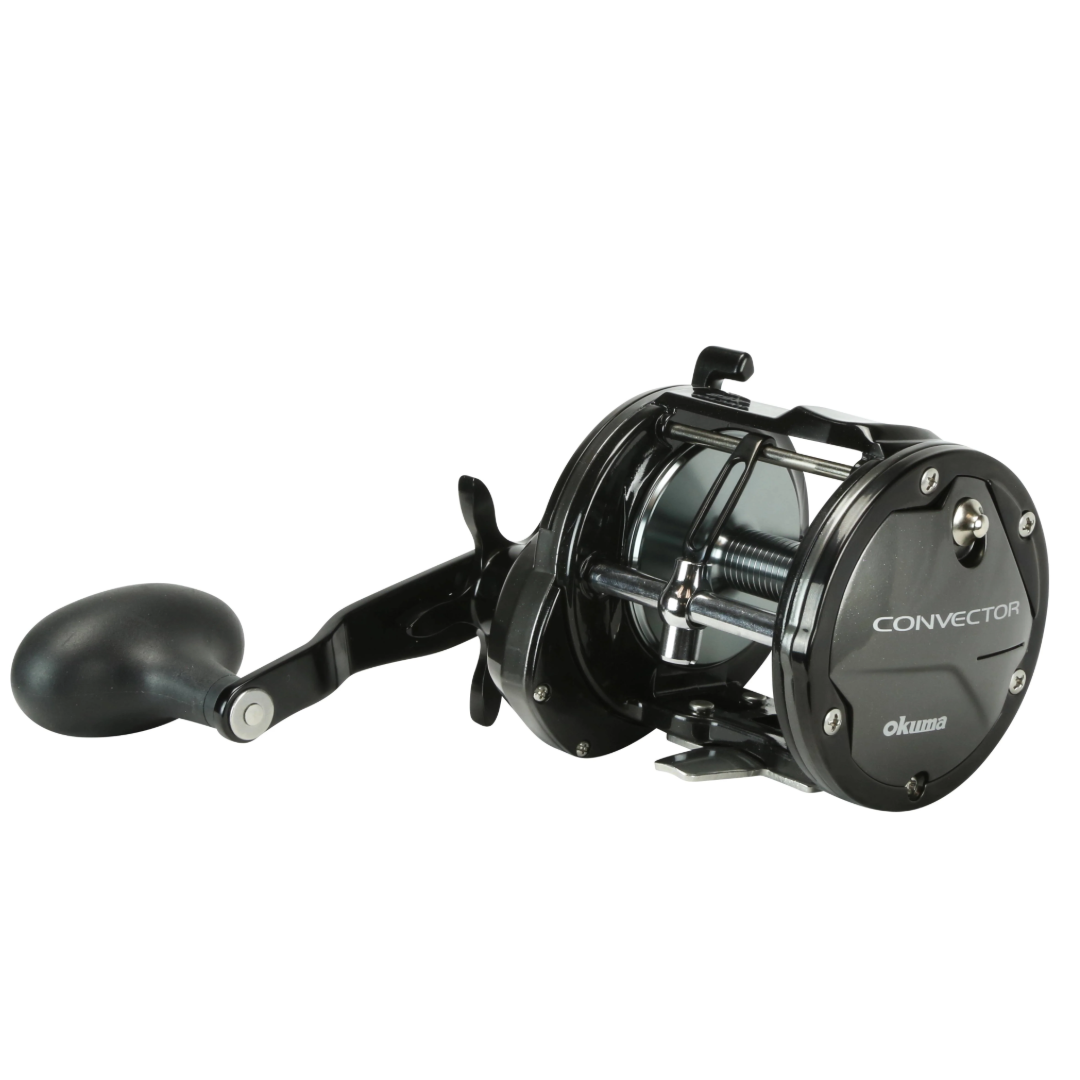

Convector B star drag reel
The Okuma Convector B Series has long been the go-to reel for serious freshwater and saltwater trolling anglers. Built to handle the demands of big-water fishing, it delivers the strength, control, and precision needed to stay in command.
Featuring a corrosion-resistant frame, oversized brass gearing, and a powerful Carbonite drag system, the Convector B offers smooth, consistent performance under heavy loads. A machined aluminum spool and self-lubricating gear system ensure long-term reliability in the harshest conditions.
Line counter models are equipped with CVT Clear View Technology for accurate, fog-free depth tracking in all weather. The wide-mouth levelwind is designed for copper and heavy braided lines, making it ideal for targeting deep-water species like salmon and lake trout. With dual anti-reverse systems and ergonomic handle knobs, every retrieve feels solid and controlled.
Built for anglers who demand performance day in and day out, the Convector B Series continues to set the standard in precision trolling.
FEATURES
- Lightweight corrosion resistant frame & side plates
- Multi-disc, Carbonite drag system
- Aluminum handle arm with Ergo grip handle knobs
- 2BB + 1RB Stainless steel ball bearings
- Quick-set anti-reverse roller bearing
- Dual anti-reverse system (Mechanical & roller bearing)
- Oversized machine cut brass XL drive & pinion gears
- Self-lubricating gearing system, all models
- Machined aluminum, gun smoke anodized spool
- Mechanical line counter function measures in feet
- CVT: Clear View Technology anti-fogging line counter
- Wide Mouth Levelwind: Clearance for copper lines
- Automatic trip spool engaging mechanism
- MSS: C-40X Mechanical Stabilizing System increases stabilization
- Convector reels are backed by a 1-year limited warranty
SPECIFICATION
CONVECTOR "B" LEVELWIND REEL
| MODEL | GEAR RATIO | BEARINGS | MONO LINE CAPACITY | SPOOL WIDTH(MM) | SPOOL OD (MM) | LINE RETRIEVE (CM) | WEIGHT (G) | MAX DRAG PRESSURE (KG) |
| CVL-20B | 5.1 | 2BB+1RB | LBS/YDS:14/290,18/230,20/210 φmm/M:0.35/270,0.40/210,0.45/150 KG/M:4/510,6/320,8/230 No/M:4/320,6/210,8/160 |
38 | 39.15 | 63 | 405 | 8 |
| CVL-30B | 4.0 | 2BB+1RB | LBS/YDS:15/510,20/420,25/310 φ mm/M:0.40/420,0.45/320,0.50/260 KG/M:6/640,8/460,10/380 No/M:6/420,8/320,10/250 |
45.5 | 52.5 | 64 | 571 | 9 |
| CVL-45B | 4.0 | 2BB+1RB | LBS/YDS:20/580,25/430,30/330 φmm/M:0.45/450,0.5/360,0.55/300 KG/M:8/650,10/530,12/390 No/M:8/450,10/350,12/290 |
50.5 | 58 | 72 | 616 | 9 |
| CVL-55B | 4.0 | 2BB+1RB | LBS/YDS:25/680,30/520,40/440 φmm/M:0.50/570,0.55/470,0.60/400 KG/M:8/1010,10/830,12/620 No./M:10/550,12/460,14/390 |
50.5 | 71.1 | 89 | 905 | 10 |
