Big enough for use as a standalone display, but compact enough to fit consoles with limited space, the HDS LIVE 7 offers access to the latest Lowrance® fish finding innovations with support for Active Imaging™, LiveSight™ real-time sonar, StructureScan® 3D with Active Imaging and Genesis Live on-screen mapping.
- Active Imaging 3-in-1 (CHIRP/Side/Down) sonar included
- StructureScan 3D with Active Imaging enhancements - Coming Fall 2018
- LiveSight real-time sonar compatible - Coming Spring 2019
- Smartphone notifications
- High-performance dual-core processor
- C-MAP Genesis Live onscreen mapping
- FishReveal Smart Target View
- High-resolution SolarMAX HD multi-touch screen
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM Marine Weather and Audio compatible
- Wireless and Bluetooth connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide Xi5 9Trolling Motor , Outboard Pilot and Power Pole anchors
- Radar and SonicHub2 audio server connectivity
- NMEA 2000 engine support
- Optional mapping upgrades include C-MAP, Navionics and more
- SD Card Storage: 2 micro SD cards up to 32GB
- Ethernet Ports: 1x 100 Mbit, 6 max MFD's on a network
- Integrated Bluetooth 4.0 with support for Bluetooth Classic
- GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
- 800x480 7" Touchscreen Display
- Dimensions: 5.73"H x 9.21"W x 3.06"D
- Screen Brightness: 1200 nits
- 16 GPS receiver channels
- NMEA 2000 Connectivity: 1x Micro-C
- 3000 Waypoints | 100 Routes | 100 Trails with up to 10,000 points per trail
- Charts Supported:
- C-MAP (MAX N, MAX N+)
- C-MAP Genesis
- C-MAP Precision Contour HD (AMER ONLY)
- Navionics (Gold, NAV+ Platinum+)
- Insight (Pro and HD)
- Lowrance Regional Mapping Partners
- Cartography Included:
- C-MAP US Enhanced Basemap (AMER models)
- C-MAP World Background (ROW models)
- Navionics basemap (AMER and ROW models)
- Sonar Compatibility:
- Integrated:
- CHIRP Broadband Active Imaging
- DownScan Active Imaging
- SideScan
- Compatible With:
- SonarHub
- Structure Scan
- Structure Scan 3D
- Item Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
- Autopilot:
- Outboard Pilot
- MotorGuide Xi5/Xi3 Trolling Motor**(Requires Motorguide PinPoint Gateway)
- Waterproof Rating: IPX7 (With door closed)
- Steering Modes:
- Course
- Heading
- Waypoint
- Power Steer
- Manouevers Turn Patterns
- Course
- Heading
- Waypoint
- Power Steer
- U-Turn
- C-Turn
- Spiral
- Zigzag
- Square
- Lazy-S
- VideoOutput: No| Input: Composite video RCA - single channel via optional adaptor
- Warranty: 2 Year + 3 additional years of upgrade options - totaling 5 years
In The Box:

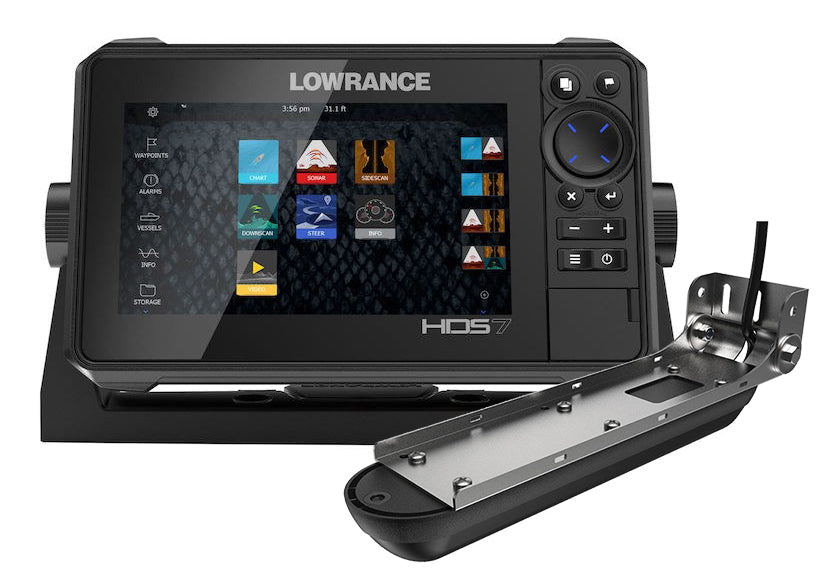

- Lowrance HDS-7 Live Fishfinder/ChartplotterActive
- Imaging 3-in-1 Transducer
- PC-30-RS422 Power Cable for HDS Series
- HDS-7 Live Bracket
- HDS-7 Live Suncover
- HDS-7 Live Bevel & SD Door
