Details

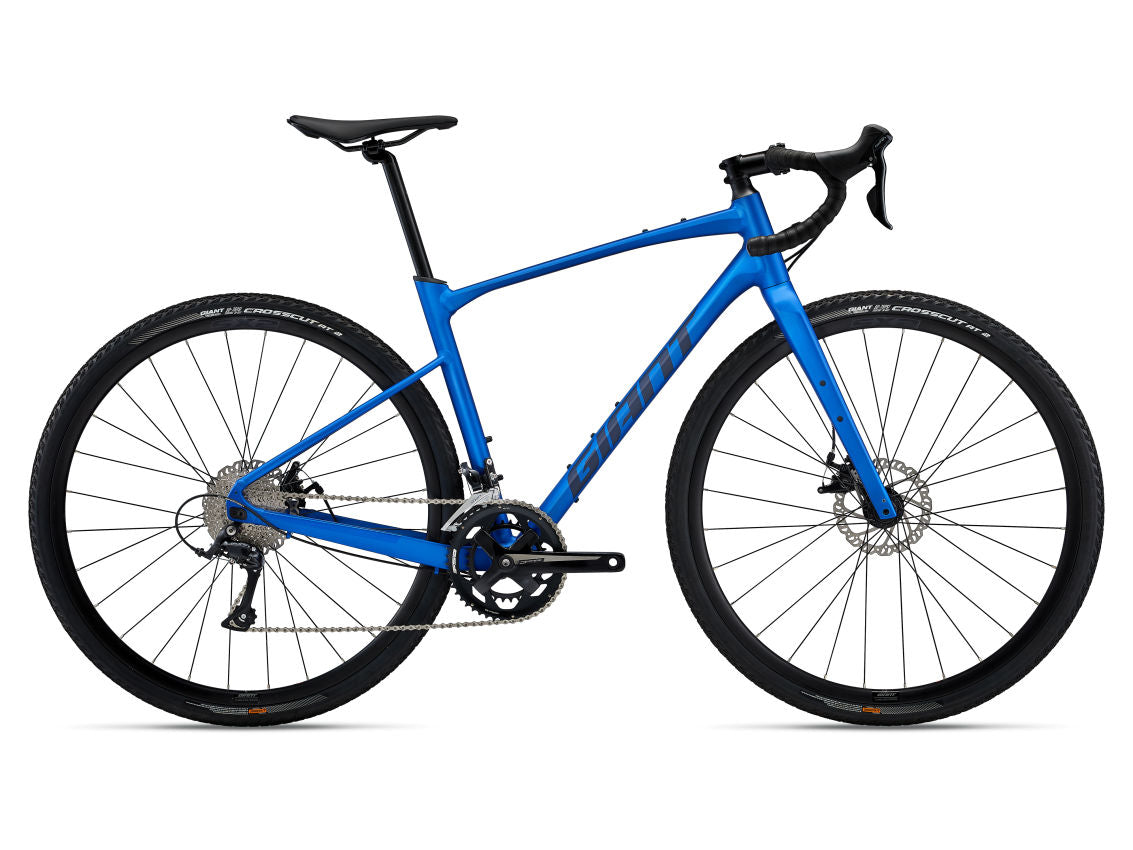

The all-new Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.
SPECS
ā Frame ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
ā Fork Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
ā Rims Giant S-X2 Disc wheelset
ā Hubs Giant S-X2 Disc wheelset
ā Spokes Giant S-X2 Disc wheelset
ā Tires Giant CrossCut AT 2, 700x38c, tubeless
ā Crankset FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
ā Chainrings cartridge
ā Shifters Shimano Sora, 2x9
ā Front Derailleur Shimano Sora
ā Rear Derailleur Shimano Sora, long cage
ā Cassette/Freewheel Shimano HG400, 11x34
ā Chain KMC X9 with Missing Link
ā Brakes Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
ā Brake Levers Shimano Sora
ā Handlebars Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
ā Tape/Grips cork tape with gel
Stem Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
ā Seatpost Giant D-Fuse, alloy, 14mm offset
ā Saddle Giant Approach
ā Pedals Sold Separately
ā Accessories & Extras tubeless prepared, 53mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position
